General Information
Brand
Greenlee
Part Number
1903
Product Type

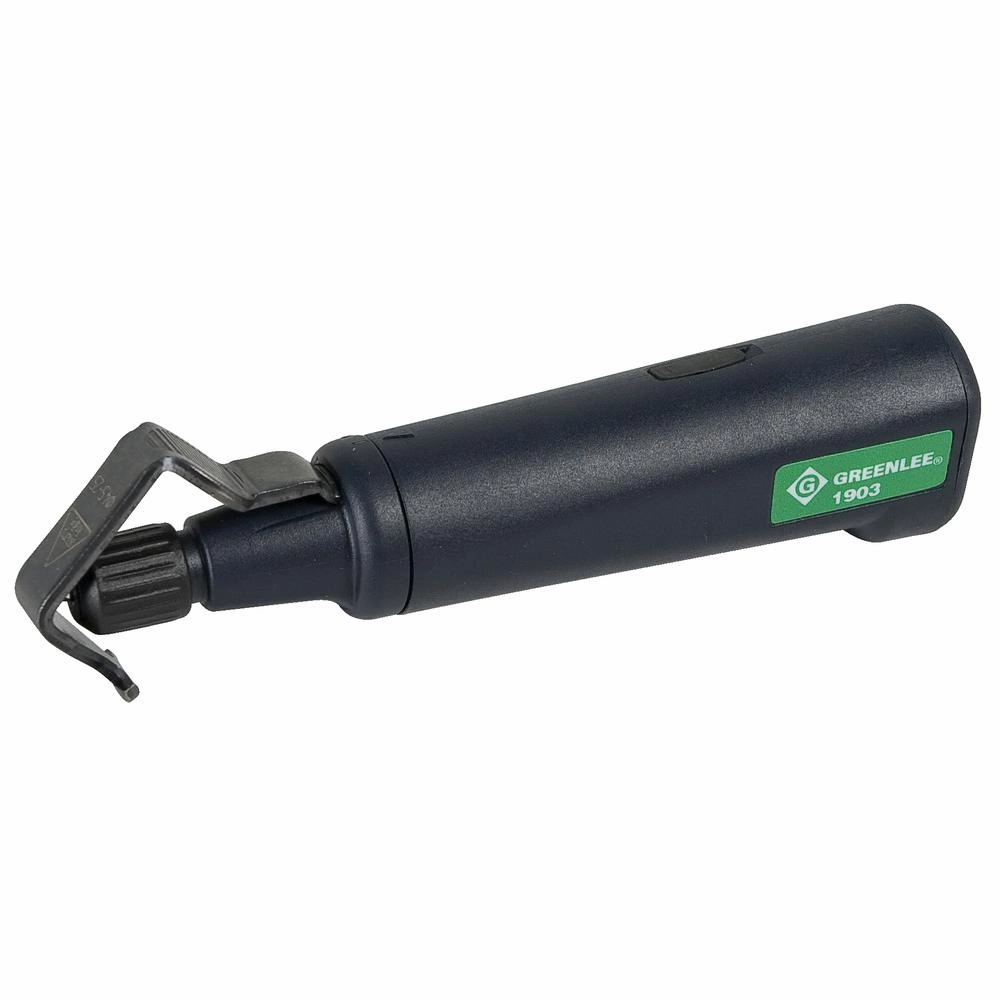

Cable stripping tool
Packaging
Retail
Country of Origin
Sweden
UPC
783310126799
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.25 kg
0.55 lb
Material
High-carbon steel blade
Details
Features
Triple action stripping - rotary, linear and spiral
Window stripping is accomplished by combining 2 rotary cuts with a with a spiral cut in between them
Eliminates cable scoring
Blade height is adjustable to precisely match insulation thickness

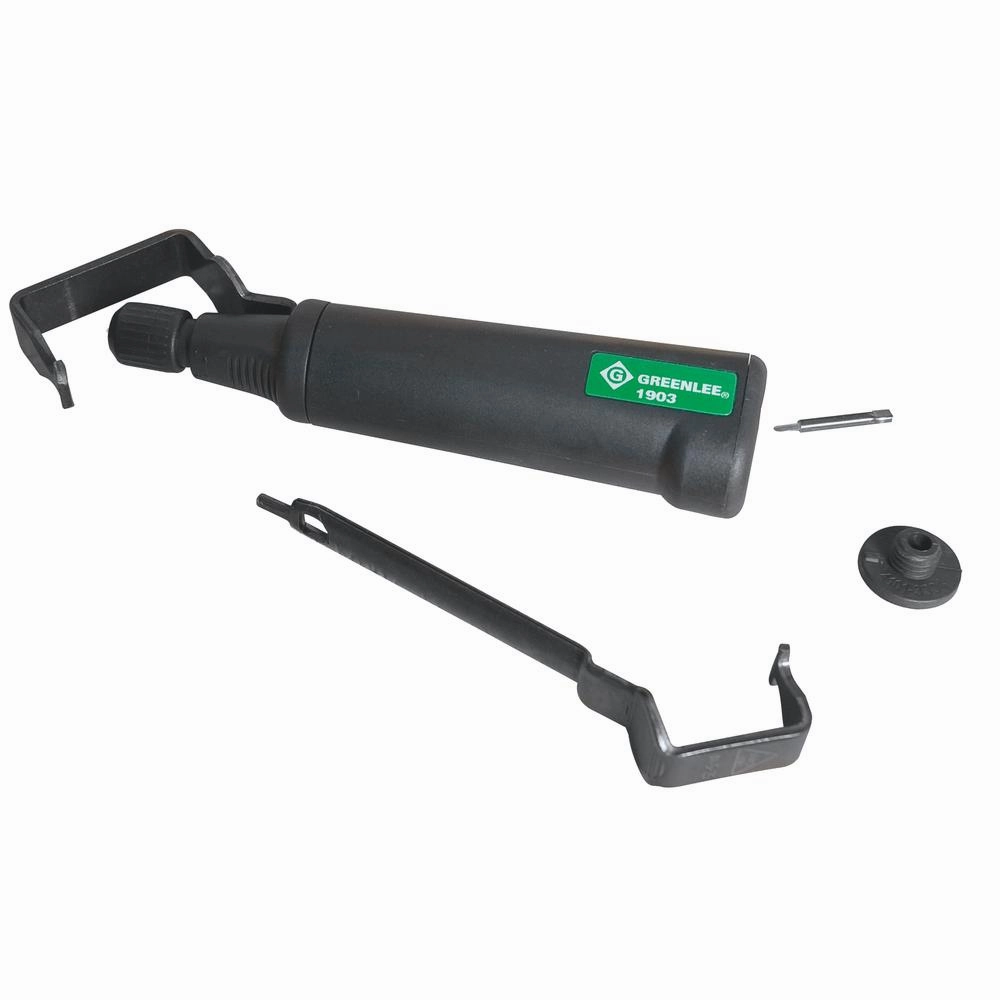

Interchangeable cable guides for small and large cable diameters
Hook on cable guide is used to start jacket removal without the need for a screwdriver or pliers
Ergonomic handle shape
Capacity: THNN cable size range 8 AWG to 1250 kcmil. Overall cable diameter .18" to 1.57". Cable diameter using small cable guide hook .18" to .98". Cable diameter using large cable guide hook .79" to 1.57
Window stripping is accomplished by combining 2 rotary cuts with a with a spiral cut in between them
Eliminates cable scoring
Blade height is adjustable to precisely match insulation thickness
Interchangeable cable guides for small and large cable diameters
Hook on cable guide is used to start jacket removal without the need for a screwdriver or pliers
Ergonomic handle shape
Capacity: THNN cable size range 8 AWG to 1250 kcmil. Overall cable diameter .18" to 1.57". Cable diameter using small cable guide hook .18" to .98". Cable diameter using large cable guide hook .79" to 1.57
