General Information
Brand
Hazet
Part Number
1847-12/15
Product Type
Circlip pliers set, 15 Pieces
Application
Correct, centred insertion of the circlip, e.g. when mounting the joint on the drive shaft
Number of Pieces
15

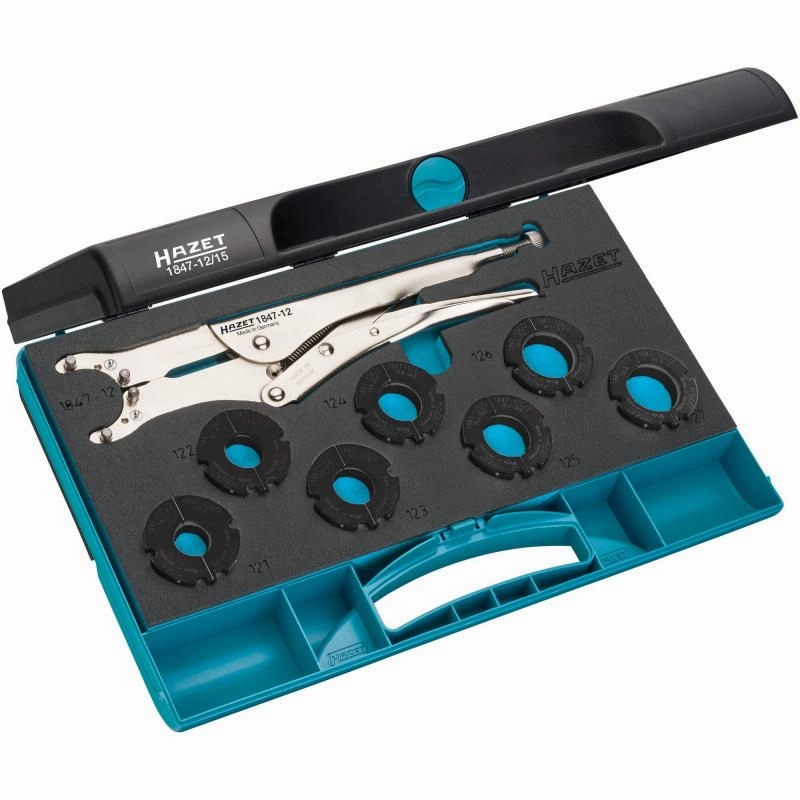

What's Included

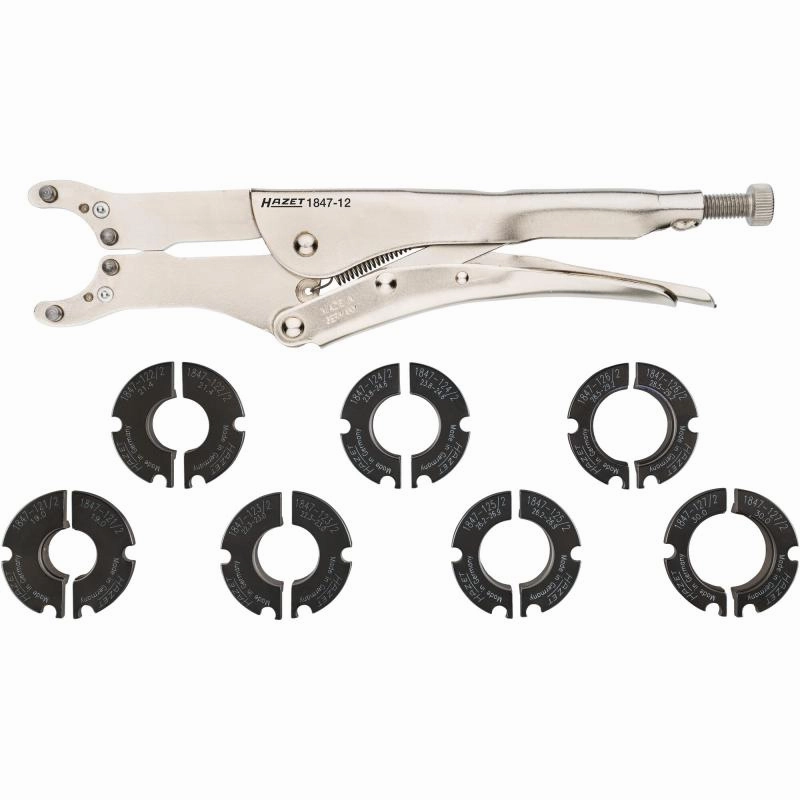

Circlip pliers 1847-12
Half shell pair 1847-121/2, 1847-122/2, 1847-123/2, 1847-124/2, 1847-125/2, 1847-126/2, 1847-127/2
Plastic box 165-L (1/3)
Safety-Insert-System, 2-component soft foam insert. Insert also suitable for HAZET Assistent
Half shell pair 1847-121/2, 1847-122/2, 1847-123/2, 1847-124/2, 1847-125/2, 1847-126/2, 1847-127/2
Plastic box 165-L (1/3)
Safety-Insert-System, 2-component soft foam insert. Insert also suitable for HAZET Assistent
Packaging
Retail
Country of Origin
Germany
UPC
4000896221288
California Residents
Proposition 65 Warning
Physical Characteristics
Length
355 mm
Width
235 mm
Height
65 mm
Details
Features
Easy, damage-free assembly of the drive shaft joint: damage to the serration of joint and shaft is avoided with internal circlip during assembly of the drive shaft joint
Easy fixing of the locking pliers with the circlip

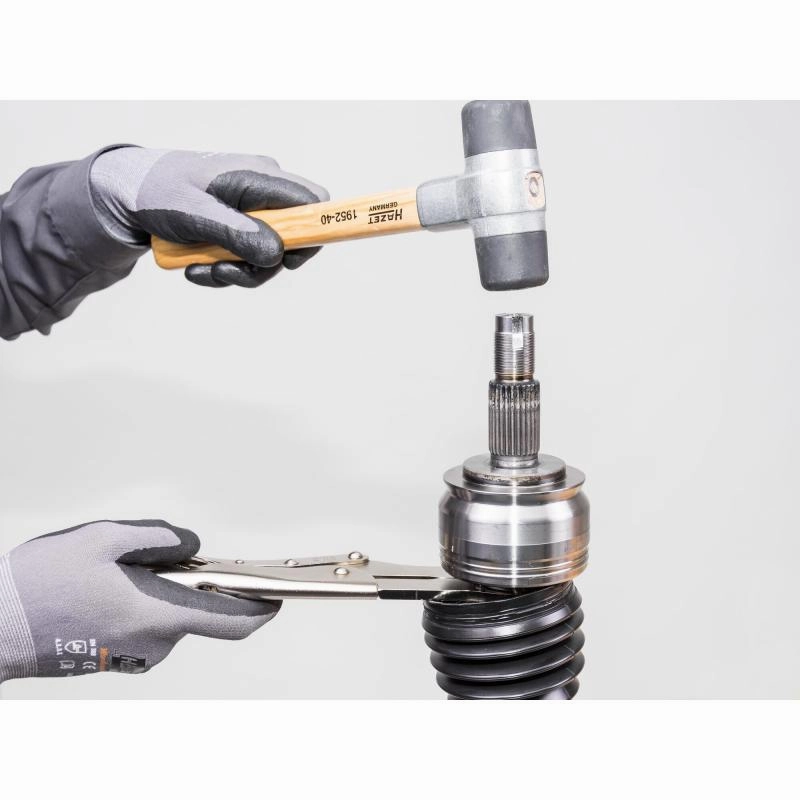

The pliers automatically slip down when striking the joint
Safe work without damage to the bellows
For drive shafts from all manufacturers
One-hand operation of the pliers
No other tools needed
Application tip:

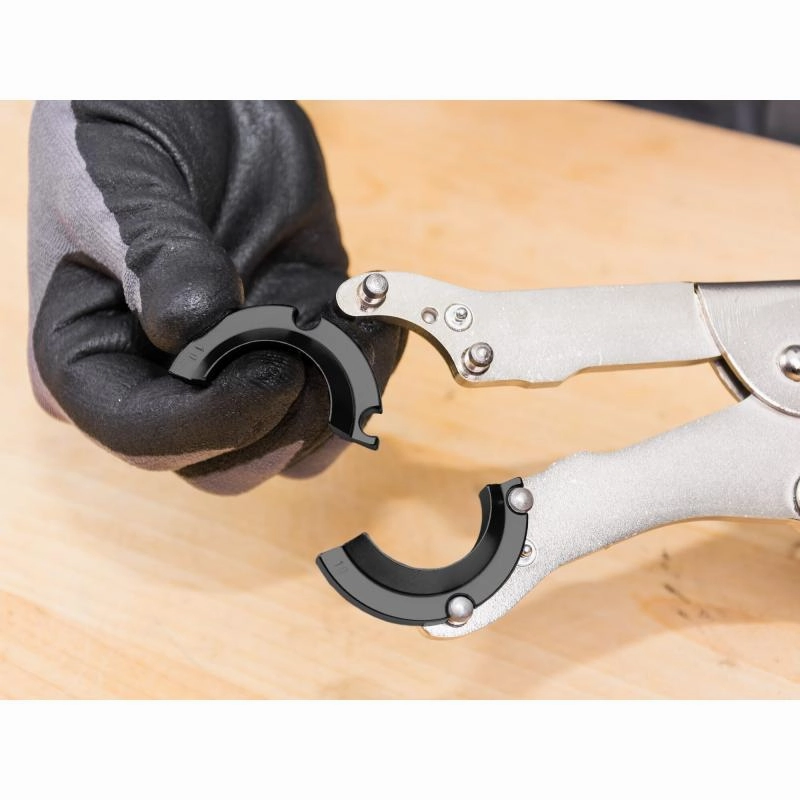

Insert appropriate half shells (shaft diameter) in pliers

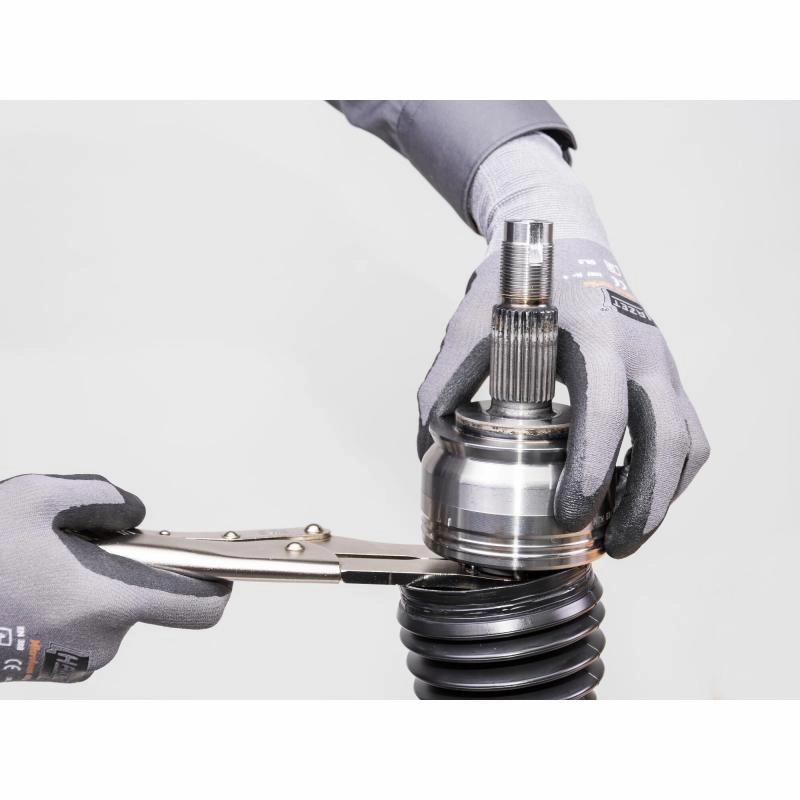

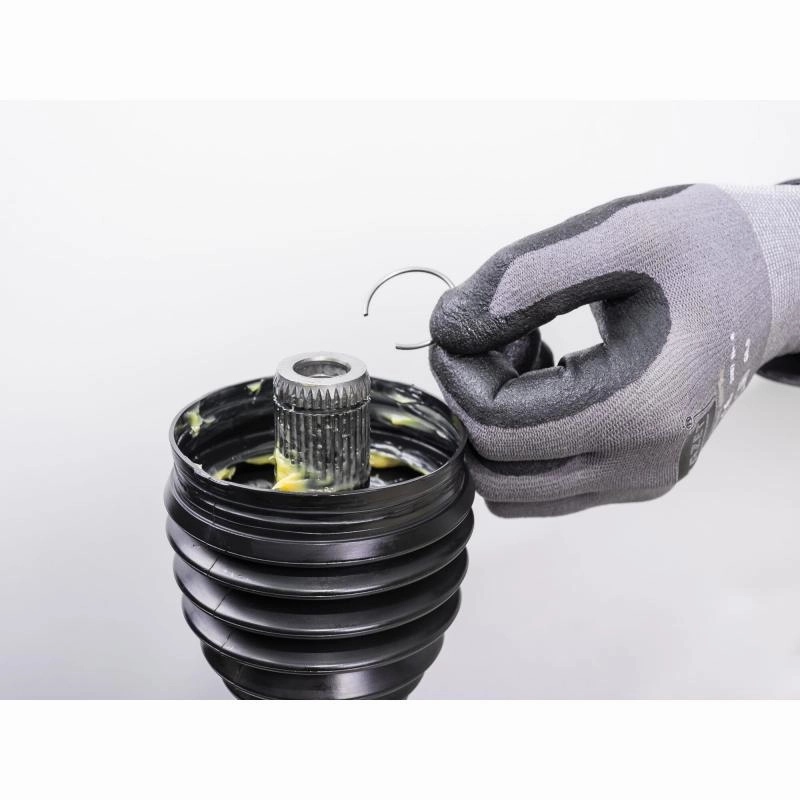

Place pliers on serration with pre-assembled circlip and clamp

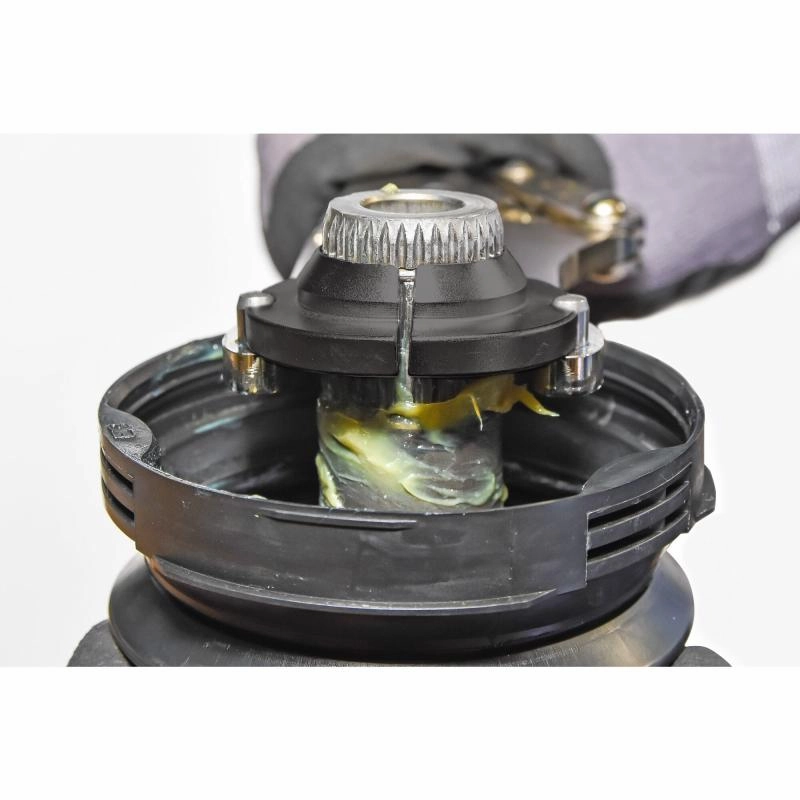

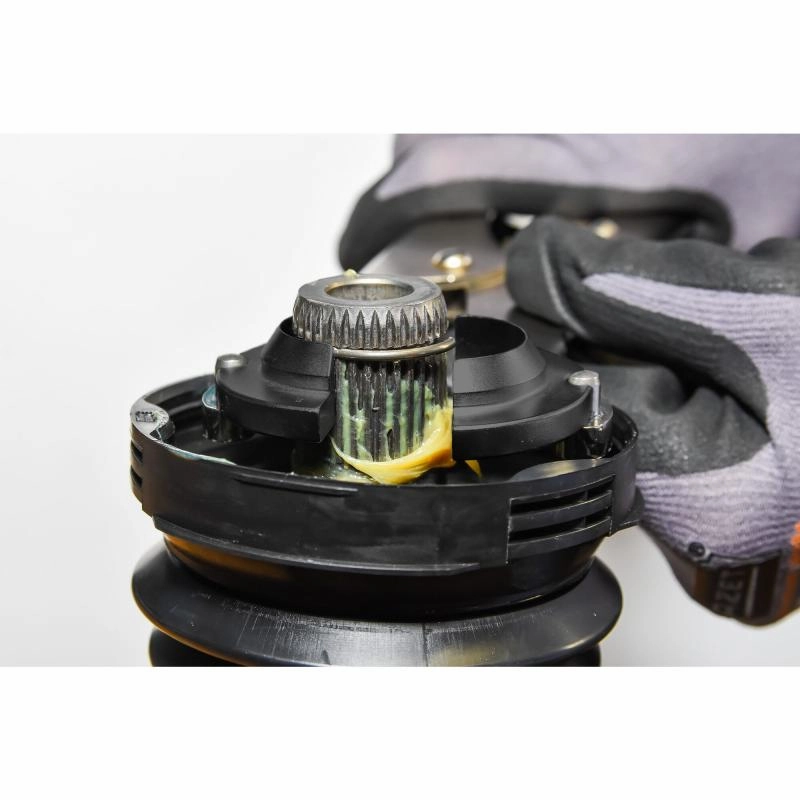

Pre-positioning of the joint due to conical shape of the pliers makes it easier to introduce the serration without damage
Suitable for almost all vehicles commonly registered in Europe
Easy fixing of the locking pliers with the circlip
The pliers automatically slip down when striking the joint
Safe work without damage to the bellows
For drive shafts from all manufacturers
One-hand operation of the pliers
No other tools needed
Application tip:
Insert appropriate half shells (shaft diameter) in pliers
Place pliers on serration with pre-assembled circlip and clamp
Pre-positioning of the joint due to conical shape of the pliers makes it easier to introduce the serration without damage
Suitable for almost all vehicles commonly registered in Europe
