General Information
Brand
KNIPEX
Packaging
Retail
Country of Origin
Germany
UPC
843221000219
California Residents
Part Number
95 12 200 SBA
Product Type
Pliers
Physical Characteristics
Length
8 3/8"
Width
2 1/8"
Height
7/8"
Weight
0.32 kg
0.71 lb
Color
Blue, Red & Gray
Finish
Black-Oxide Finish & Burnished
Material
High-Grade Tool Steel
Details
Features
For cutting copper and aluminum cables
Not suitable for steel wire and hard drawn copper conductors
Precision ground, hardened blades
Clean and smooth cut without crushing and deformation

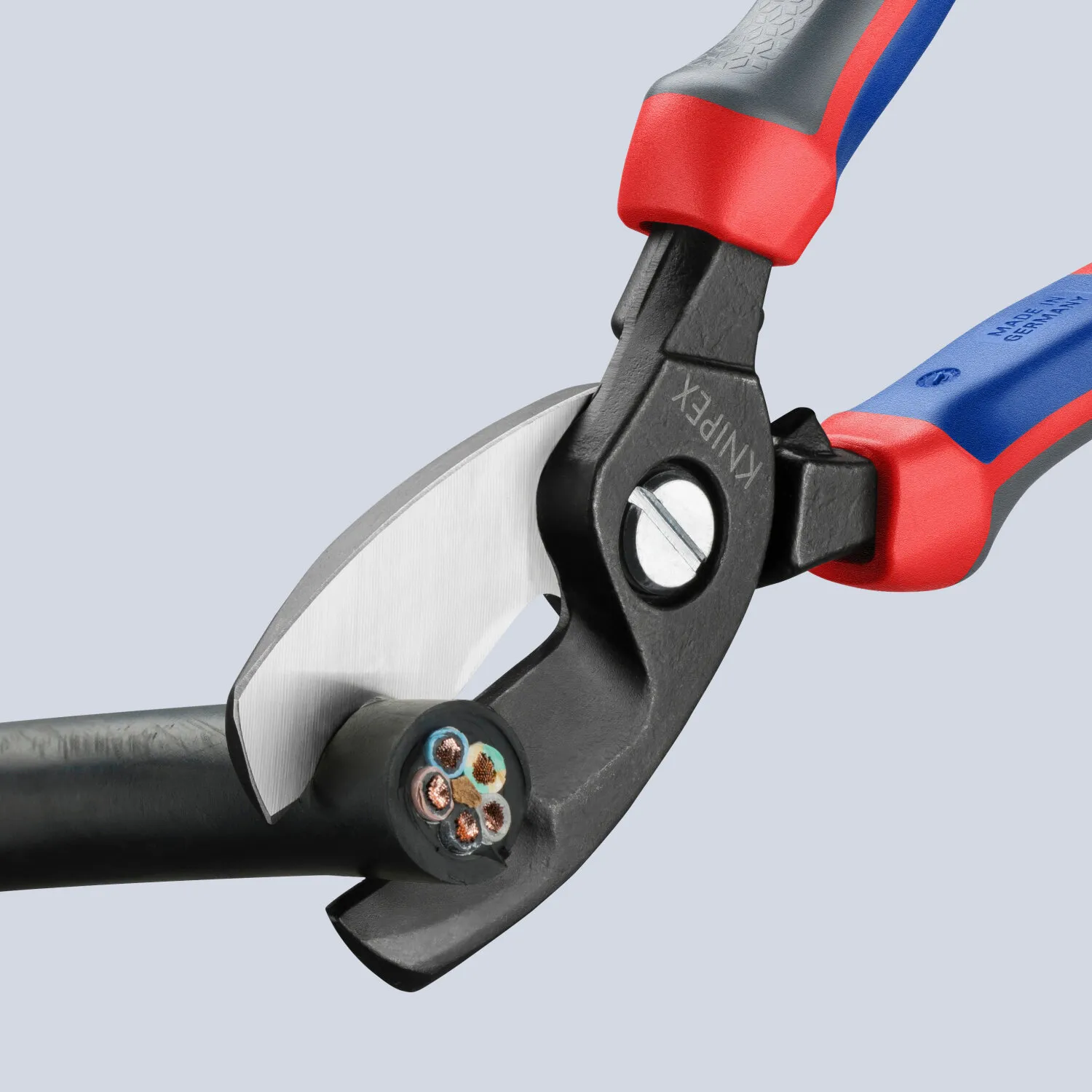

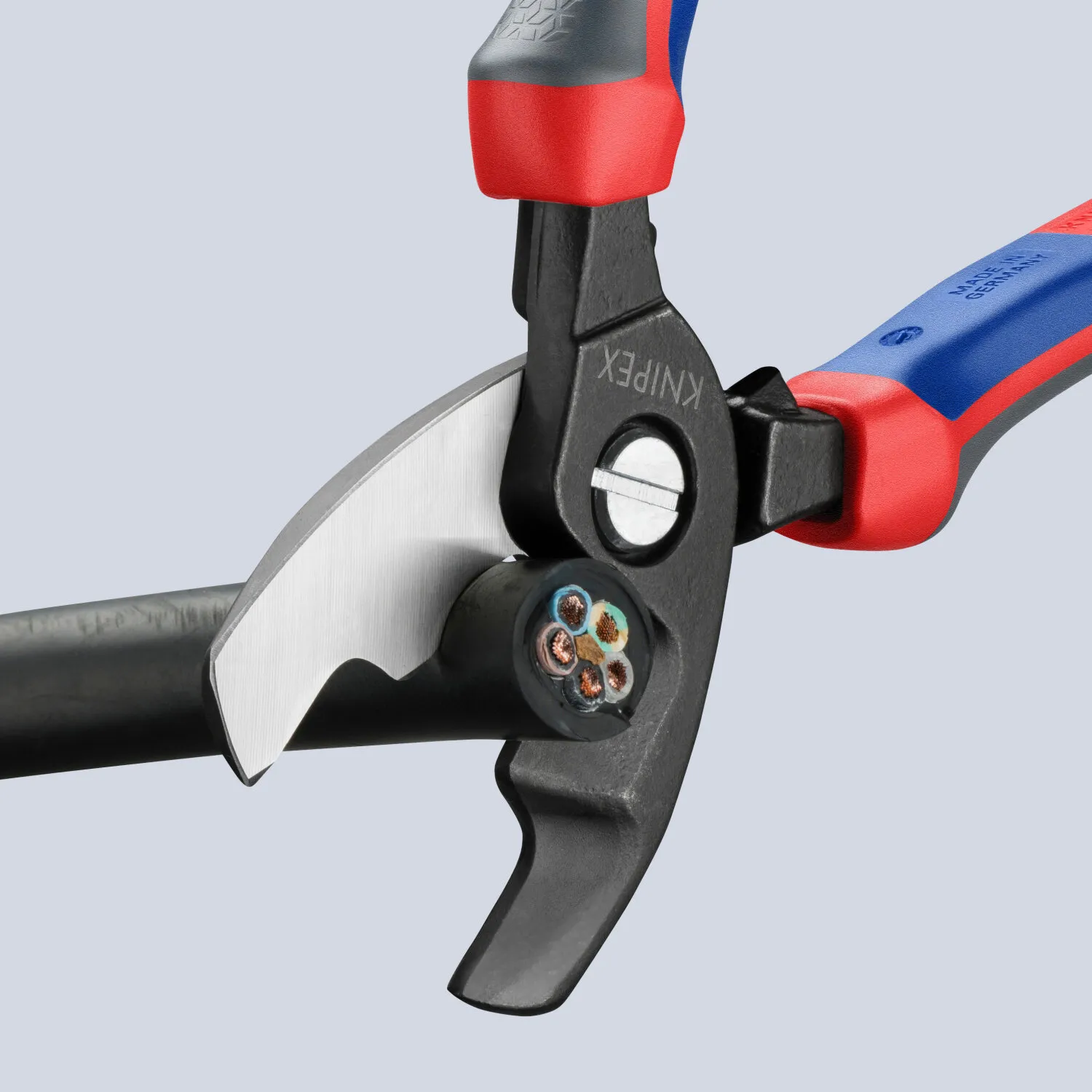

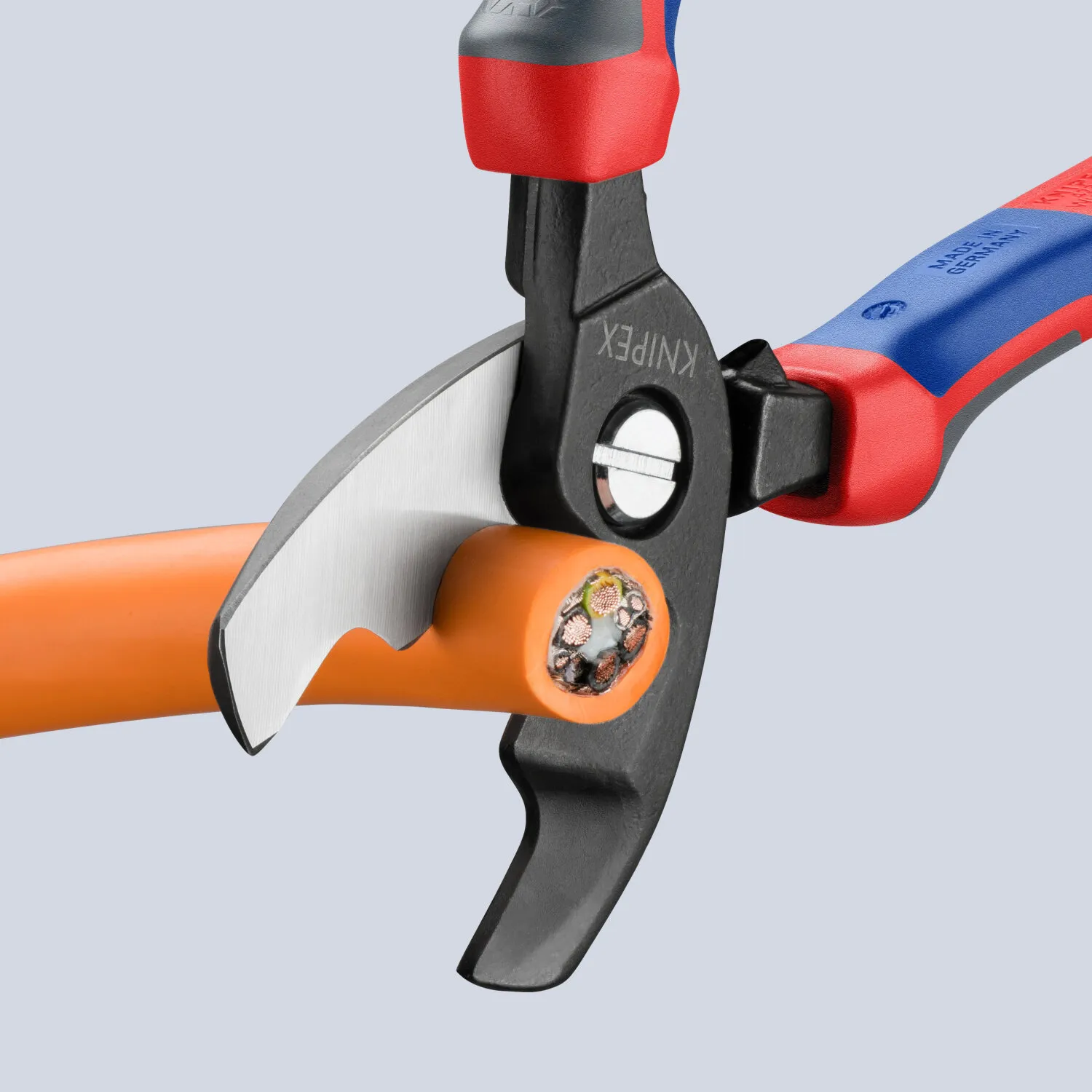

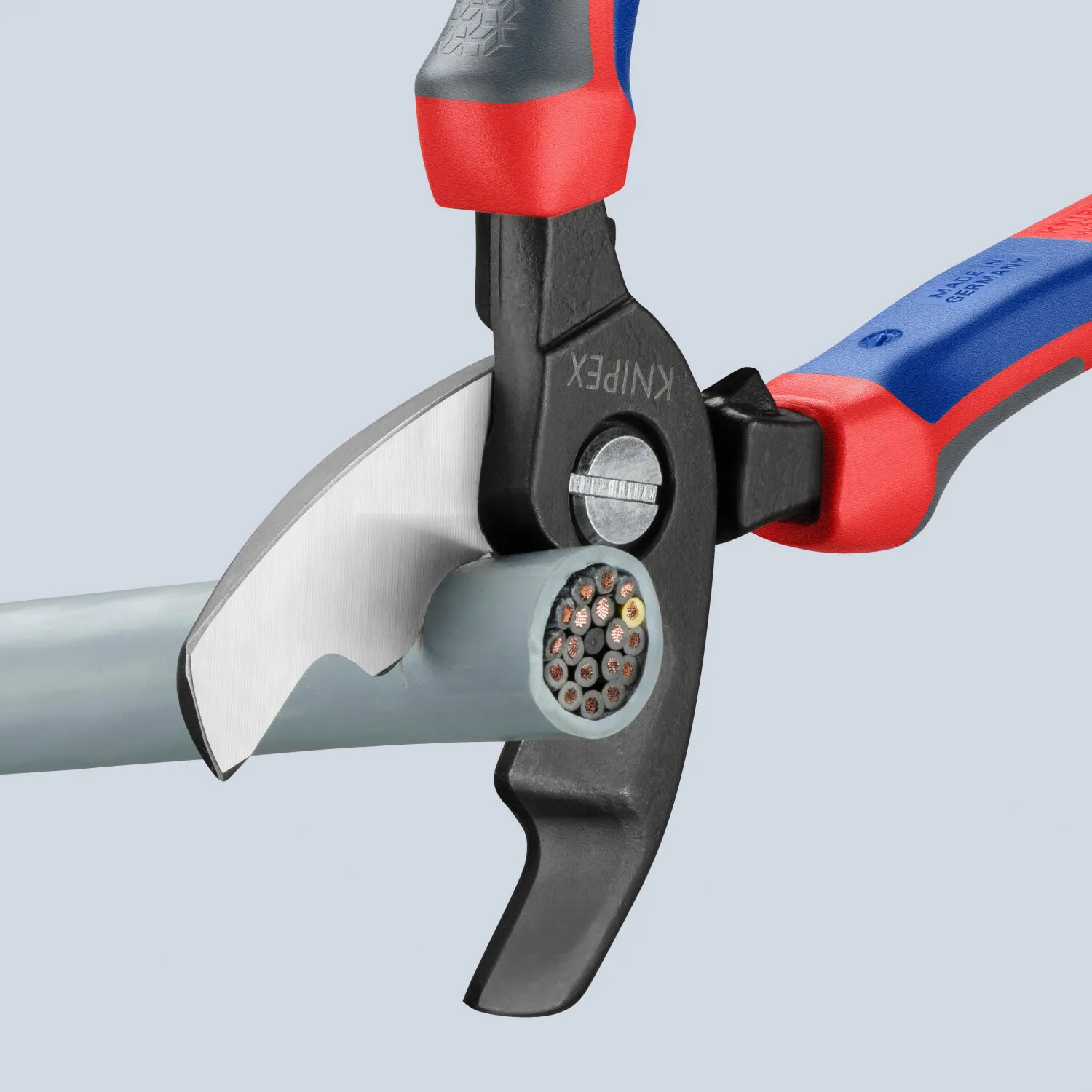

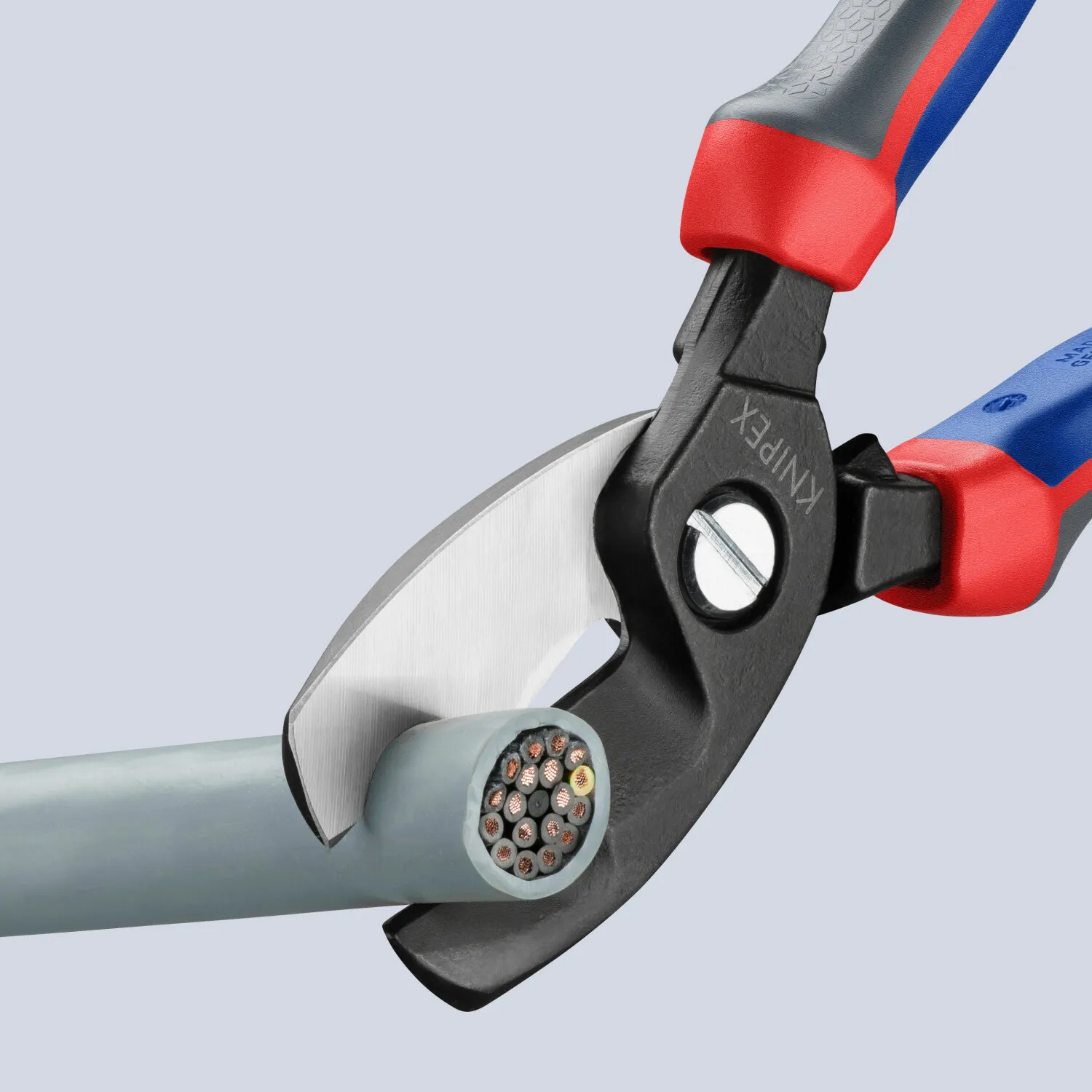

By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to 25/32" dia. can be cut in one-hand operation
Less effort required due to favorable lever ratio and optimized cutting edge geometry
Pinch guard prevents operators' fingers being pinched
Adjustable bolted joint, self-locking
High-grade special tool steel; forged, oil-hardened
Not suitable for steel wire and hard drawn copper conductors
Precision ground, hardened blades
Clean and smooth cut without crushing and deformation
By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to 25/32" dia. can be cut in one-hand operation
Less effort required due to favorable lever ratio and optimized cutting edge geometry
Pinch guard prevents operators' fingers being pinched
Adjustable bolted joint, self-locking
High-grade special tool steel; forged, oil-hardened
Size
Joint Type: Bolted
Cutting Edge Shape: Shear
Nominal Length: 8"
Handle Length: 5 1/4"
Cutting Capacity - CU and AI Conductor: 25/32"
Cutting Edge Shape: Shear
Nominal Length: 8"
Handle Length: 5 1/4"
Cutting Capacity - CU and AI Conductor: 25/32"
Grip Type

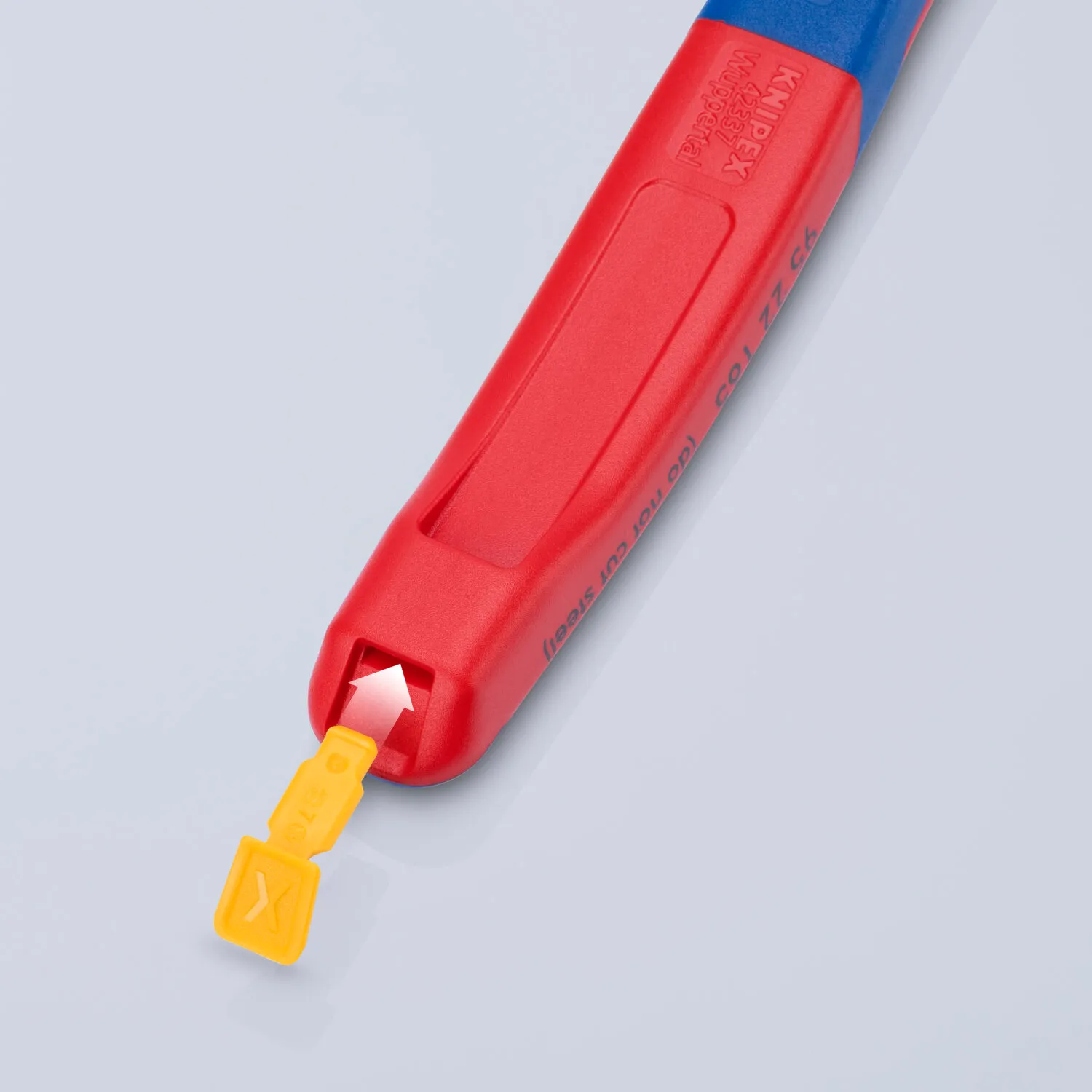

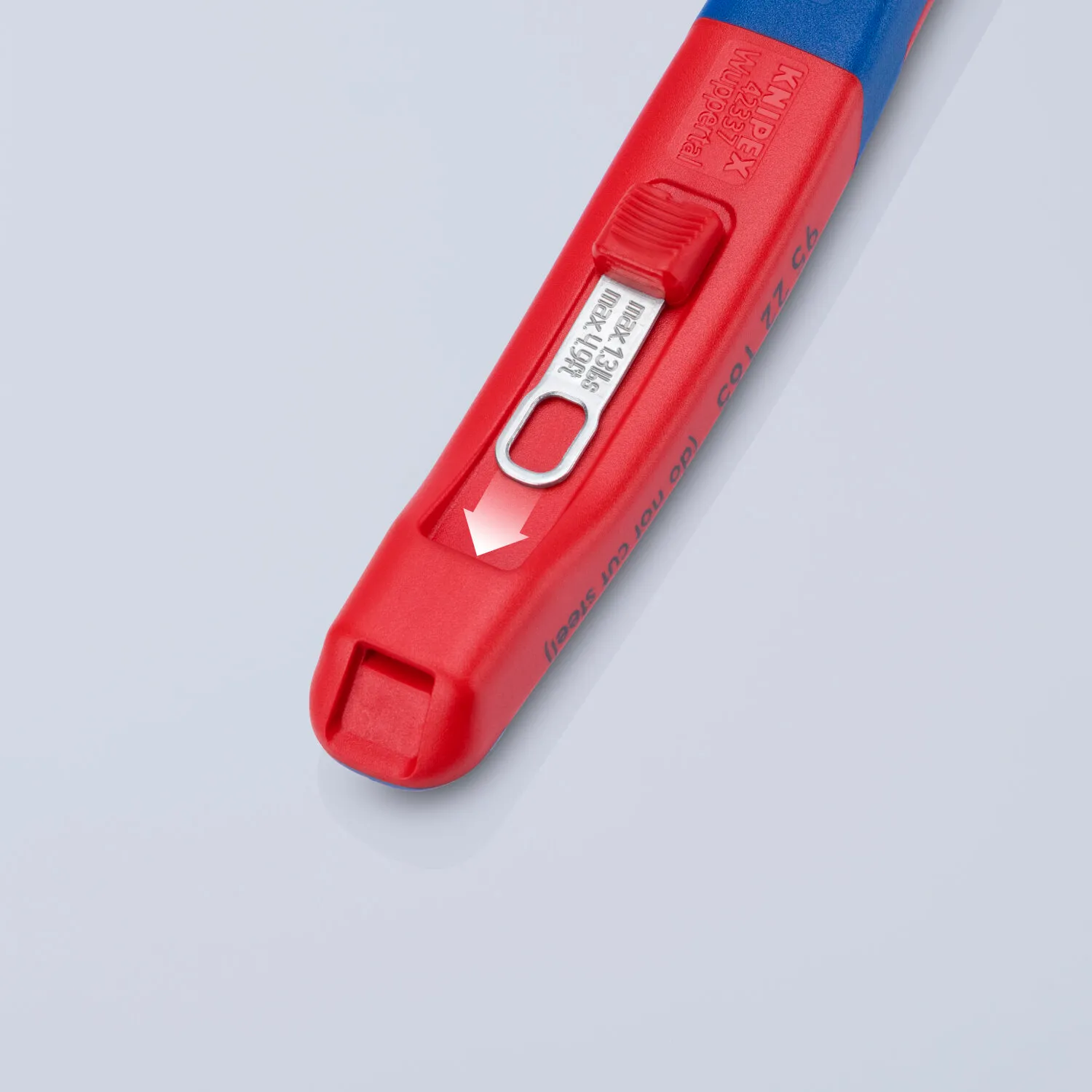

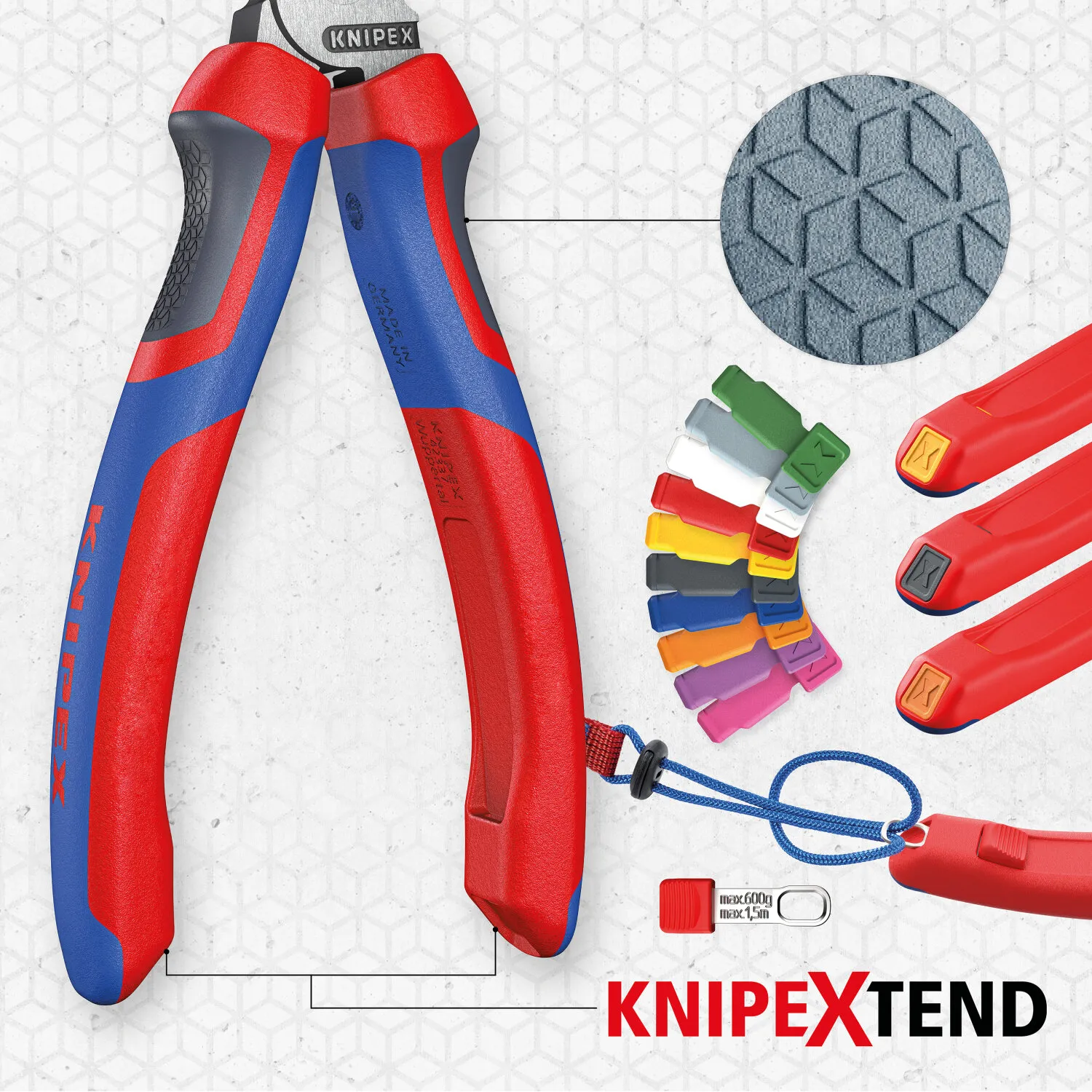

KnipeXtend Comfort Handle
Pliers Type

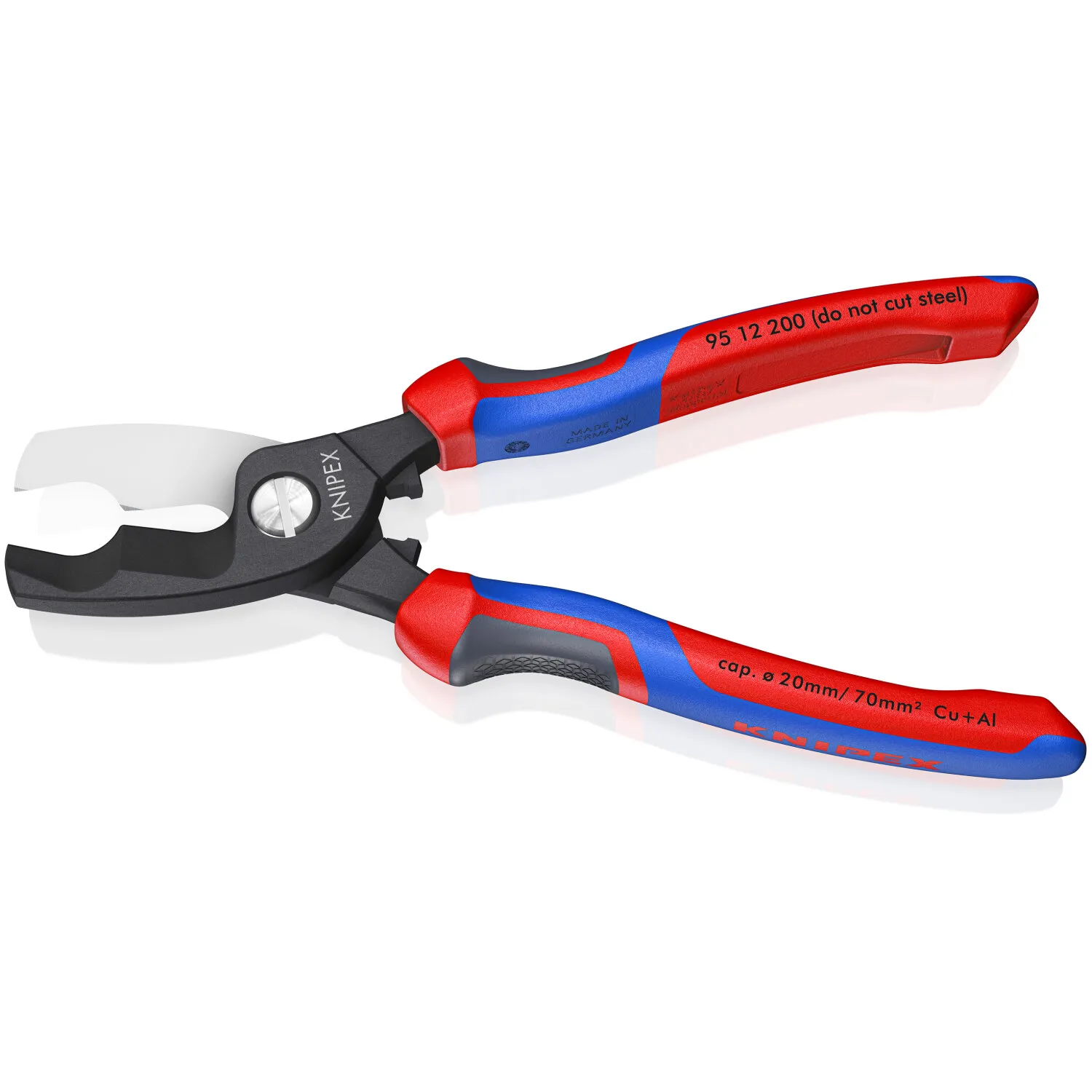

Cable Shears
