General Information
Brand
Ridgid
Packaging
Retail
Country of Origin
United States
UPC
095691767875
California Residents
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
76787
Product Type

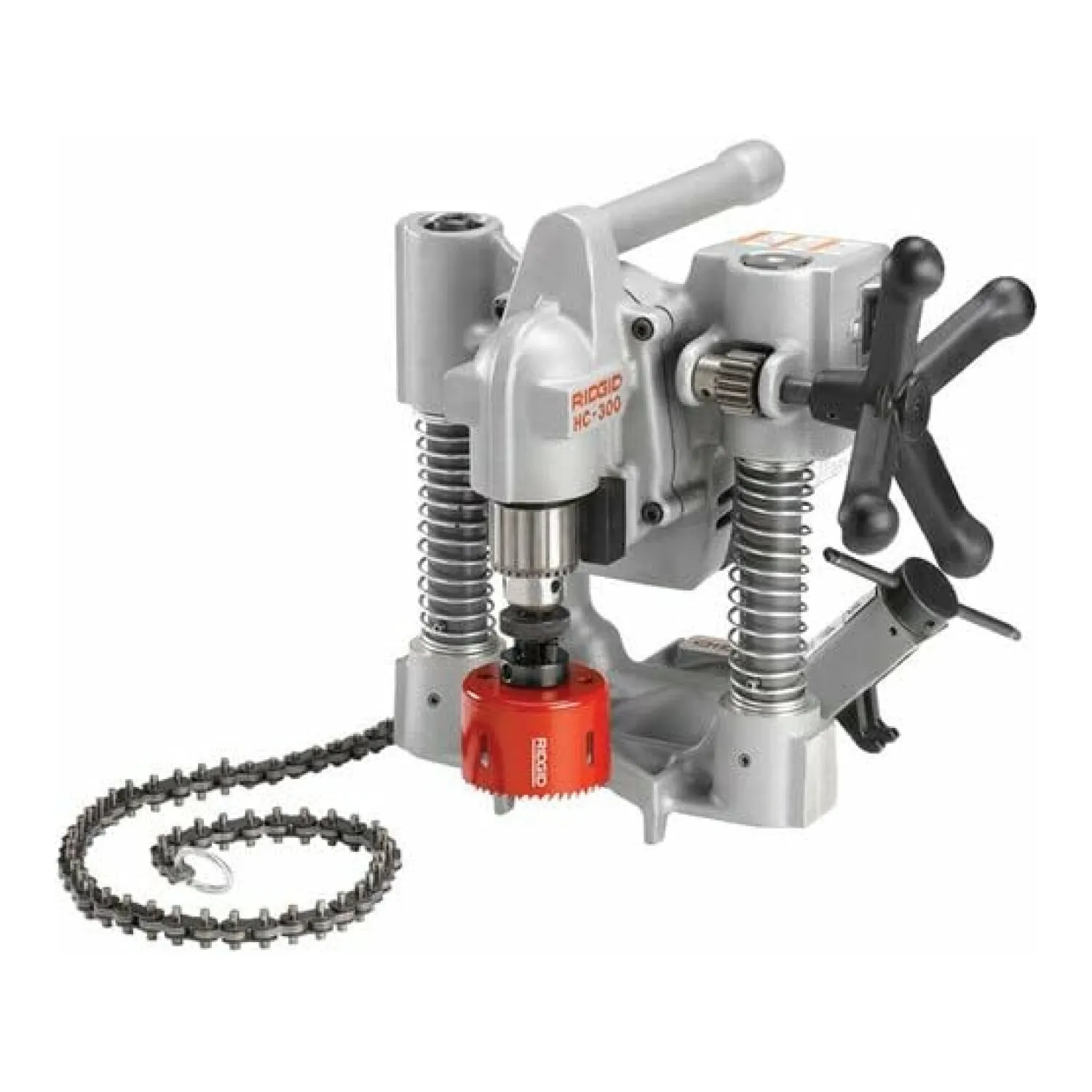

Hole Cutting Tool
Physical Characteristics
Weight
17.74 kg
39.10 lb
Color
Metallic & Red
Material
Steel
Details
Features
Quick connecting two-piece design allows for easy mounting, transport, and set up
Powerful 1.2 HP, 5.5 Amp motor delivers 360 RPM to quickly bore holes while optimizing hole saw life
Spring-loaded chain saves time and significantly aids set up and operation
Ergonomically designed with single-feed handle and ON/OFF switch for easy operation
Compact size allows for use in tight quarters and difficult-to-reach locations
Equipped with horizontal and vertical flats to ensure perpendicular cutting
Multiple hole sizes allow fittings to be used for branching unpressurized pipelines
Powerful 1.2 HP, 5.5 Amp motor delivers 360 RPM to quickly bore holes while optimizing hole saw life
Spring-loaded chain saves time and significantly aids set up and operation
Ergonomically designed with single-feed handle and ON/OFF switch for easy operation
Compact size allows for use in tight quarters and difficult-to-reach locations
Equipped with horizontal and vertical flats to ensure perpendicular cutting
Multiple hole sizes allow fittings to be used for branching unpressurized pipelines
Size
Hole Cutting Capacity: Up to 3" (76 mm)
Pipe Diameter Mounting Range: 1 1/2" to 8" (38 mm to 200 mm)
Chuck Size: 1/16" to 1/2" (1.6 mm to 13 mm)
Motor: 230V, 1.2 HP; approved by CSA to CSA and UL standards
Output Speed: 360 RPM (no load)
Arbor Capacity: Up to 7/16"
Pipe Diameter Mounting Range: 1 1/2" to 8" (38 mm to 200 mm)
Chuck Size: 1/16" to 1/2" (1.6 mm to 13 mm)
Motor: 230V, 1.2 HP; approved by CSA to CSA and UL standards
Output Speed: 360 RPM (no load)
Arbor Capacity: Up to 7/16"
