General Information
Brand
Wera
Part Number
05075832001
Product Type
Safe-Torque
Number of Pieces
23
What's Included
1xSafe-Torque A 2 Set 1, 1/4" hexagonal, 2-12 Nm, 23 pieces
1xSafe-Torque A 2 torque wrench with 1/4" hexagon drive, 2-12 Nm, 2-12
9x8790 HMA Zyklop 1/4" socket: 5.5x23.0, 6.0x23.0, 7.0x23.0, 8.0x23.0, 9.0x23.0, 10.0x23.0, 11.0x23.0, 12.0x23.0, 13.0x23.0
1x870/1 Adaptor, 1/4 inch x 25 mm
1x851/4 Z bits, PH 2x50
6x867/4 Z TORX bits: TX 10x50, TX 15x50, TX 20x50, TX 25x50, TX 27x50, TX 30x50
5x840/4 Z bits: 2.5x50, 3.0x50, 4.0x50, 5.0x50, 6.0x50
1xHook and Loop Fastener Strip 240, 50.0x240.0
1xSafe-Torque A 2 torque wrench with 1/4" hexagon drive, 2-12 Nm, 2-12
9x8790 HMA Zyklop 1/4" socket: 5.5x23.0, 6.0x23.0, 7.0x23.0, 8.0x23.0, 9.0x23.0, 10.0x23.0, 11.0x23.0, 12.0x23.0, 13.0x23.0
1x870/1 Adaptor, 1/4 inch x 25 mm
1x851/4 Z bits, PH 2x50
6x867/4 Z TORX bits: TX 10x50, TX 15x50, TX 20x50, TX 25x50, TX 27x50, TX 30x50
5x840/4 Z bits: 2.5x50, 3.0x50, 4.0x50, 5.0x50, 6.0x50
1xHook and Loop Fastener Strip 240, 50.0x240.0
Packaging
Retail
UPC
4013288223043
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
1.07 kg
2.36 lb
Details
Tip Type
Phillips, Torx, Square, Hex
Size
Sockets:5.5x23.0, 6.0x23.0, 7.0x23.0, 8.0x23.0, 9.0x23.0, 10.0x23.0, 11.0x23.0, 12.0x23.0, 13.0x23.0
Adaptor: 1/4 inch x 25 mm
851/4 Z bits: PH 2x50
867/4 Z TORX bits: TX 10x50, TX 15x50, TX 20x50, TX 25x50, TX 27x50, TX 30x50
840/4 Z bits: 2.5x50, 3.0x50, 4.0x50, 5.0x50, 6.0x50
Adaptor: 1/4 inch x 25 mm
851/4 Z bits: PH 2x50
867/4 Z TORX bits: TX 10x50, TX 15x50, TX 20x50, TX 25x50, TX 27x50, TX 30x50
840/4 Z bits: 2.5x50, 3.0x50, 4.0x50, 5.0x50, 6.0x50
Torque Range Nm
2-12 Nm
Features

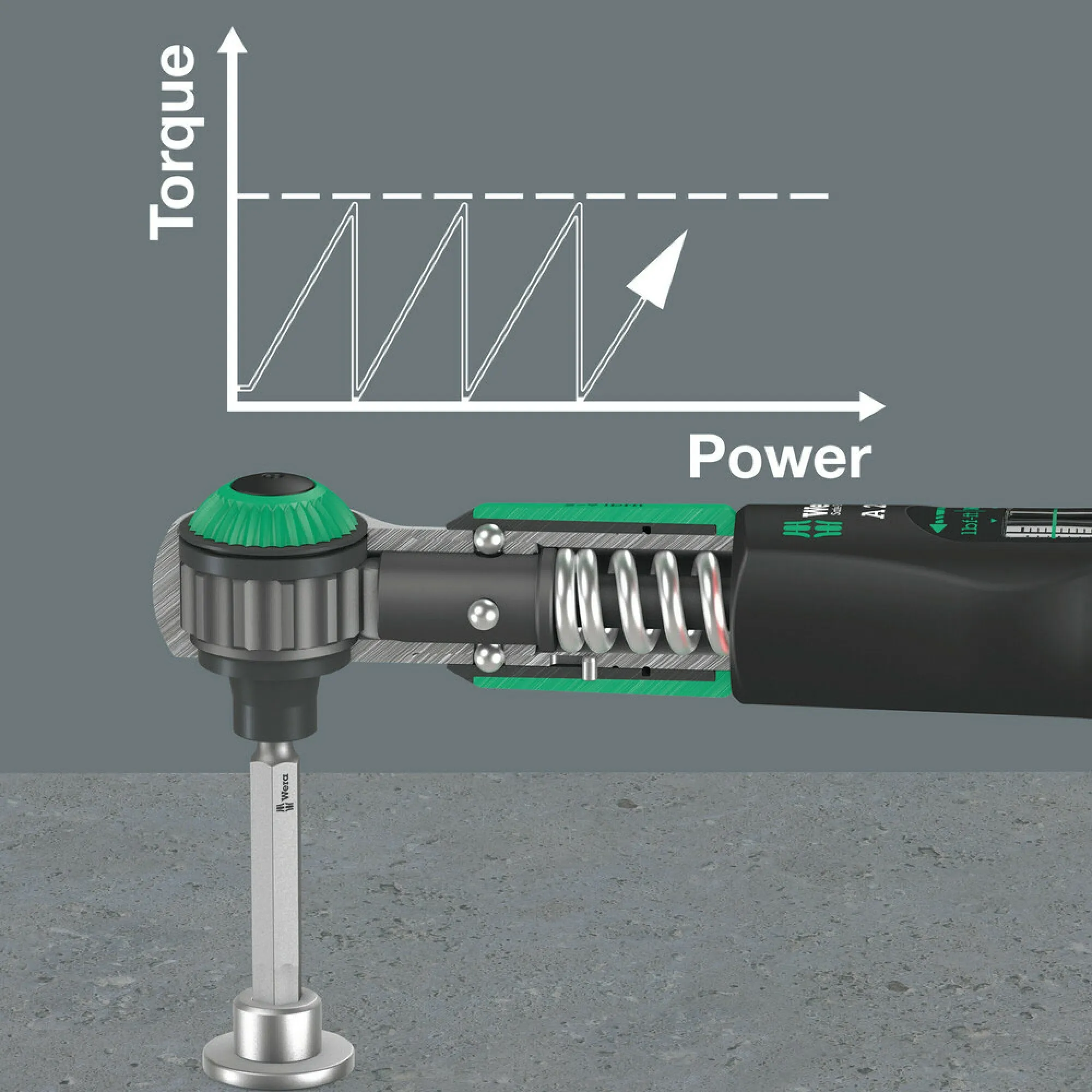

Slip-over release mechanism - the set torque can never be overtightened

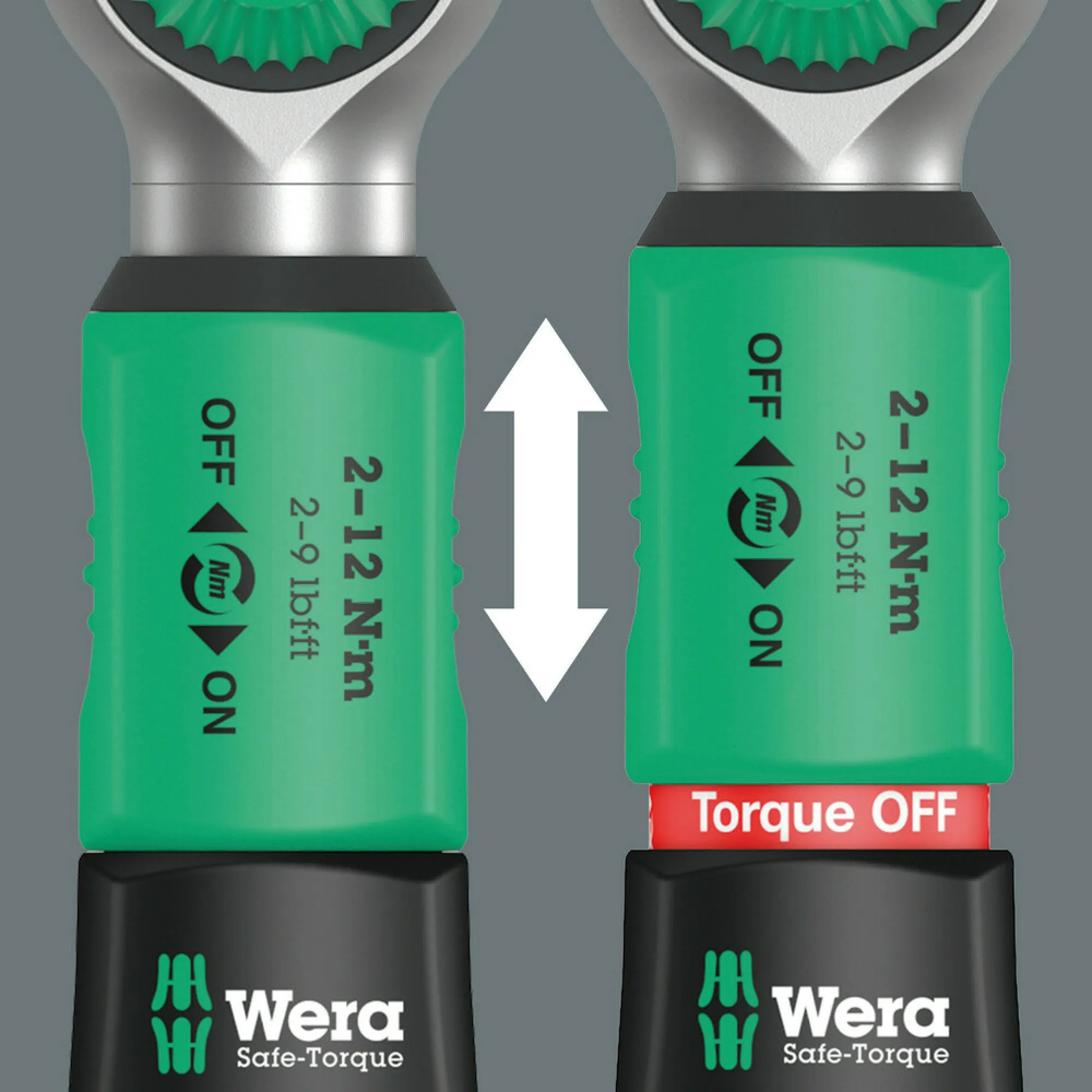

Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation

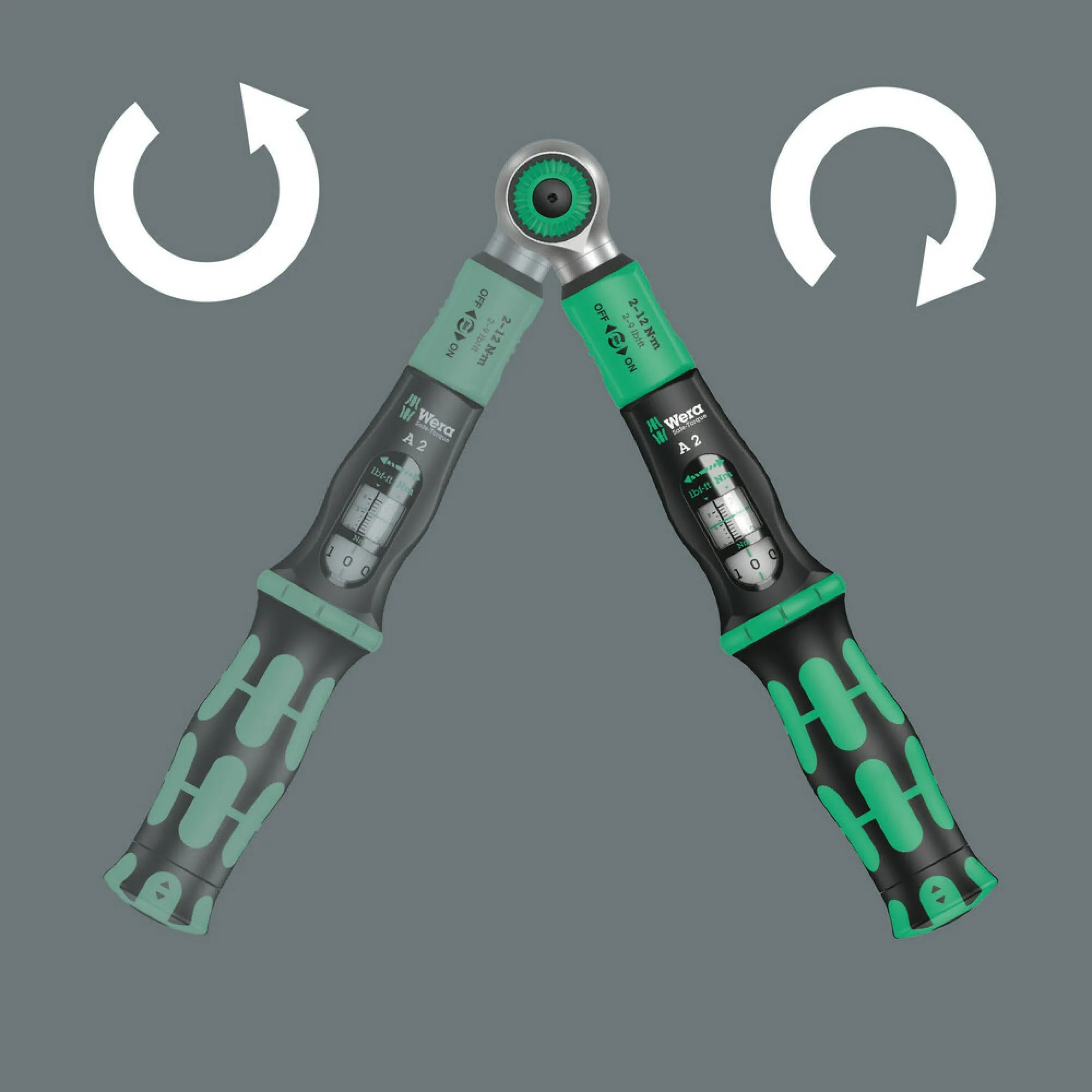

For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque

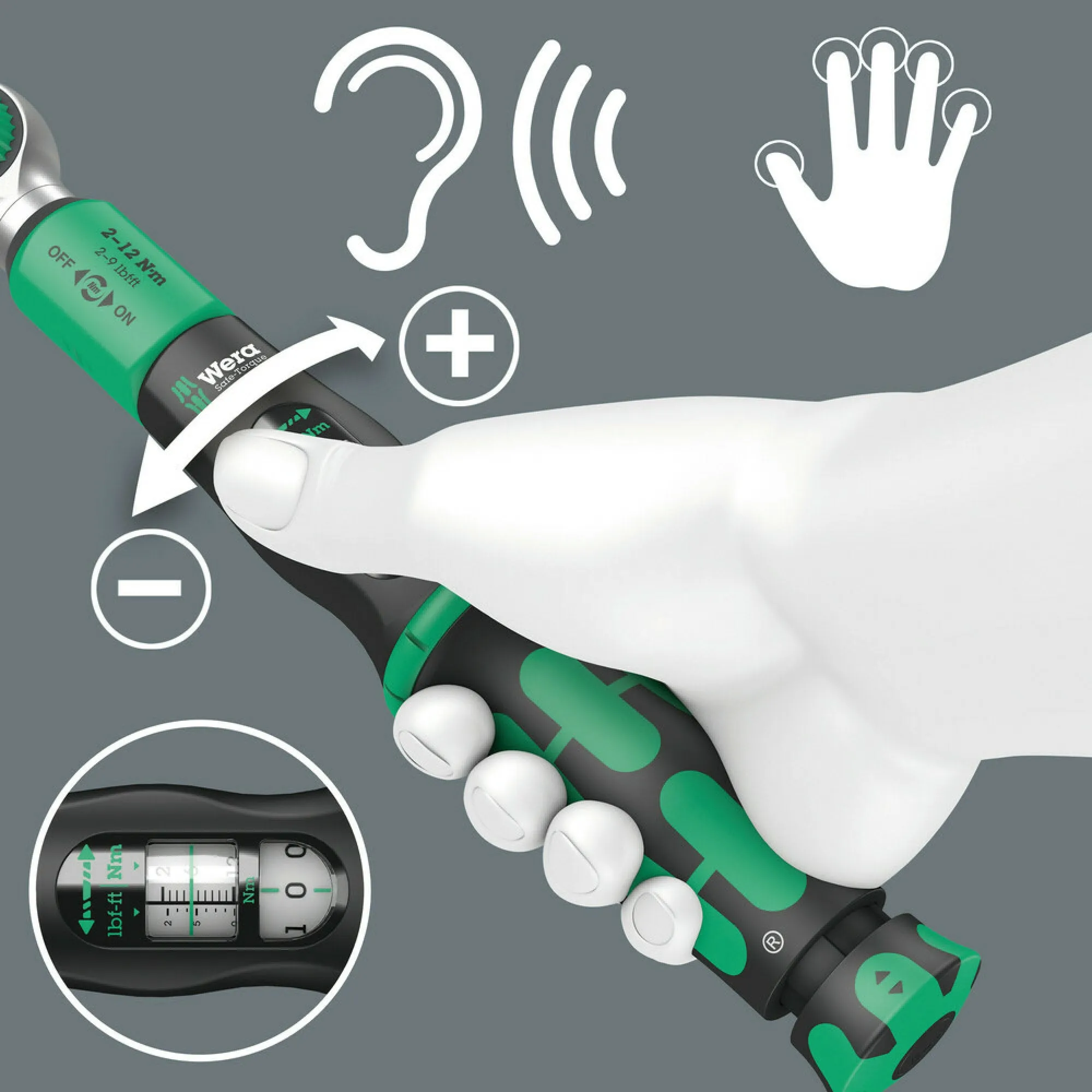

Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
After the target torque has been reached, the release angle is only 30

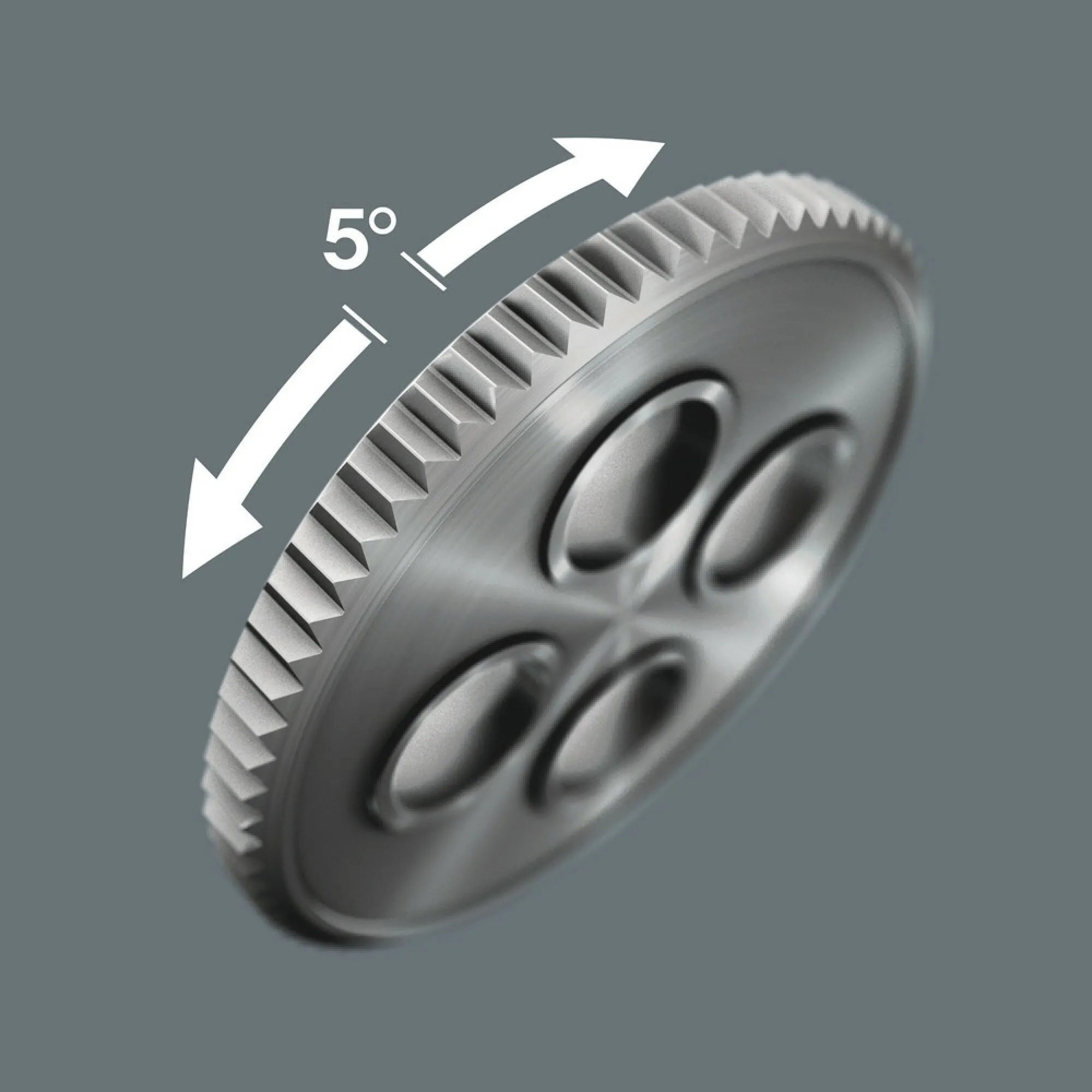

The fine toothing with 72 teeth allows for a low return angle of 5
1/4" hexagon drive for the use of 1/4" bits
Use of 1/4" sockets also possible with the Wera adaptor 870/1
Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
After the target torque has been reached, the release angle is only 30
The fine toothing with 72 teeth allows for a low return angle of 5
1/4" hexagon drive for the use of 1/4" bits
Use of 1/4" sockets also possible with the Wera adaptor 870/1
